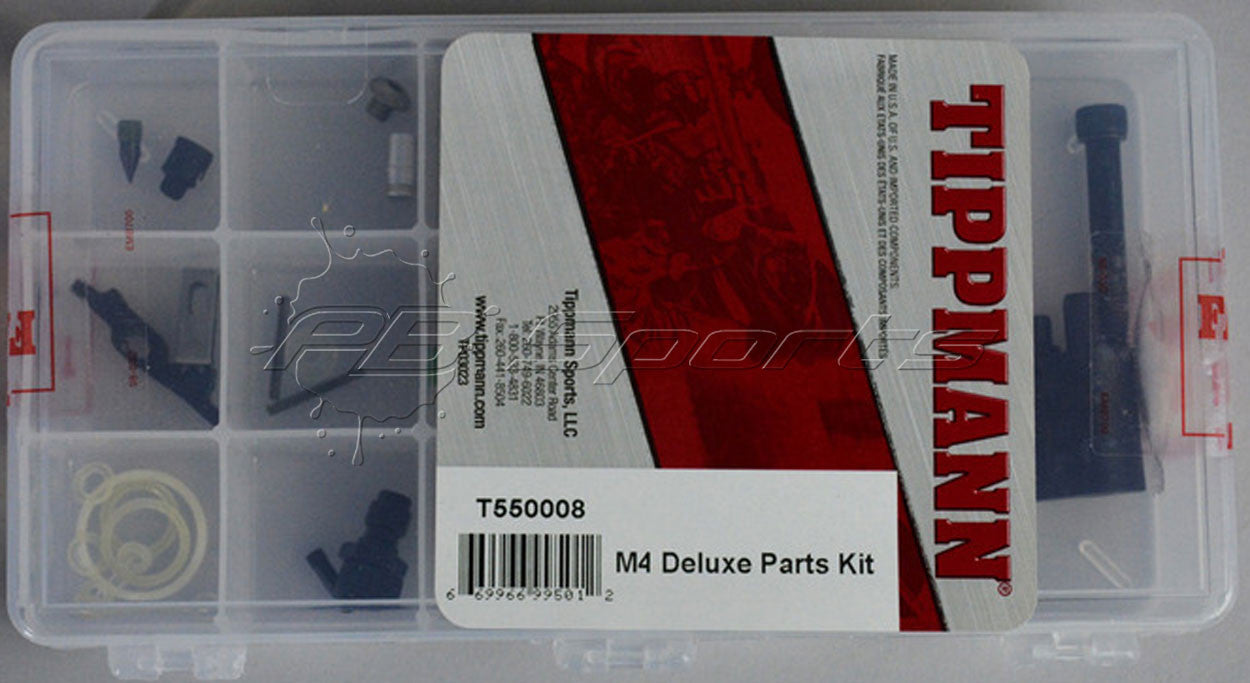

This is the Deluxe parts kit for the Tippmann M4
Includes:
QTY Part No. Description
1 TA20065 Grease Pack
1 LUBE Oil Pack
1 98-12A O-ring, C.U., 90A, 2-019
2 TA50029 Pin Detent
2 TA20049 O-Ring, C.U., 70A, 2-006
2 TA30049 O-Ring, C.U., 70A, 2-008
2 TA20096 .150" I.D. X 0.037" C.S., O-Ring, C.U., 70A
1 TA50139 10-32 x 3/16" LONG BHSCS
1 TA50095 SHCS #6-32 X 1/4"
2 TA50128 Spring, Comp., 0.750 F.L. X 0.084" O.D.
1 TA20073 Quick Fill Nipple
1 TA50141 Locking Tab For Input Fitting
1 TA50236 Puncture Valve Gas Line Plug Complete
1 TA50133 #8-32 X 3/16" Long Set Screw Cup Point
2 TA07065 #10-32 X 1" LHSHCS
2 TA02060 #10-32 Hex Nut X 5/16"
2 TA50049 Front Sight Clamp
2 TA50050 Front Sight Clamp Bolt
1 TA50014 Ball Latch (Bucking)
1 Pl-42D Nut, Square 1/4"-20
1 TA50110 HOP UP ADJUSTING BLOCK
1 TA50033 #10-32 UNF TAPERED POINT SET SCREW
1 TA50048 1/4"-20 X 2.5" SHCS
1 TA50143 Spring, Comp., 0.120" O.D. X 0.375" F.L.
1 02-35 Sear
2 02-33 Dowel Pin, 1/8" X 1/2", W/Knurl
1 02-33A Dowel Pin, Black
1 TA50148 Trigger Bushing
1 98-18 Trigger Return Slide
1 98-19 .125" X 0.250" Dowel Pin
2 TA50024 1/8" External C-Clip
2 02-88 Sear Spring
1 TA50224 Front Bolt Assembly
1 TA50004 Safety
1 TA50086 Safety Detent Pin
1 TA20034 12g Puncture Seal
1 TA20041 O-ring C.U., 70A, 2-014
1 TA35055 O-ring, C.U., 70A, 2-013
